K8s CI Bot Helper Job: automating "make update"
If you are contributing to the Kubernetes project and are developing on a Windows PC, it is conceivable that you will encounter certain issues that will cause your pull request to get held up by test failures. This article describes a workaround for a similar issue I encountered when attempting to have my modifications approved and merged into the master branch.
Why is this needed?
While contributing to kubernetes/kubernetes for some minor documentation changes, the pushed changes needed to be updated with other verified contents of the entire documentation. So, in order for the change to take effect, a single command must be performed to ensure that all tests on the CI pipeline pass. The single command
make update runs all presubmission verification tests. For some reason on the “Windows Subsystem for Linux” environment the tests, specifically the update-openapi-spec.sh script, failed (in my case, take a look at the conversation here), eventually failing the
You might encounter the following on your PR
The tests failing the particular issue:
Additionally one can check the failed test via the
link provided under details in the above image.
Run the failing
.sh scripts individually known from the CI job output, to generate the expected files to fix up the failures. The
.sh scripts can be found residing under the
hack/ directory at the root of the
kubernetes/kubernetes code base.
In this particular case, these files were to be run:

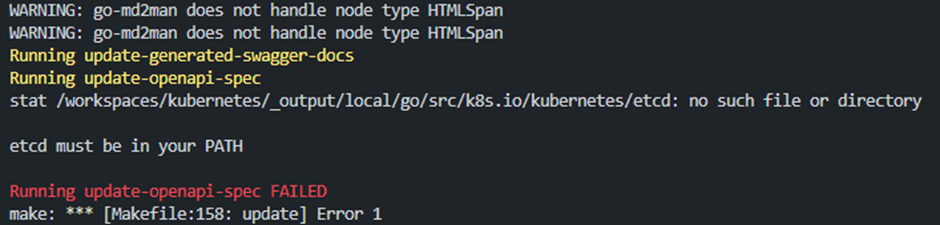

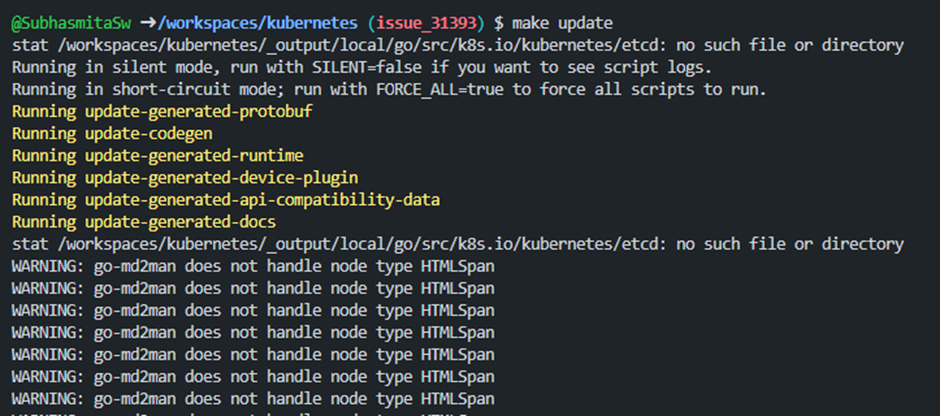

After you run these, you might see either of the below issues:
Using Visual Studio Code:
Possible solutions to counter the above errors
- Remove the Makefile and Makefile.generated_files files:
rm Makefile Makefile.generated_files
- Create the symlinks:
ln -s build/root/Makefile Makefile
ln -s build/root/Makefile.generated_files Makefile.generated_files
PS: takes adequate time to generate the scripts on windows.
The current situation
Many contributors do not have access to powerful environments in which to run
make update or
make verify. They can utilise vscode/wsl/codespaces and other tools to recommend modifications, but they might get tripped up by
make verify scripts because in many cases, we end up with files that needs to be re-generated. It’s a tall order for them to scan the build log from
make verify to determine which specific scripts in
hack/ directory they need to run.
In the meantime, the short term workaround is to add a CI job that folks can trigger when they need it, that runs
make update and provides a zip archive that they can be told to download. The archive includes all the files that changed as a result of running
Implementing the Short Term Workaround
The problem was that for some of the verify scripts to work well, the scripts needed both Linux
and plenty of local resources (CPU, memory). Once we realized this issue, we decided to add a new CI job. This CI job is named
You can trigger this CI job by commenting
/test pull-kubernetes-update as a Prow bot command in any Kubernetes PR. This CI job runs
make update and then generates a zip archive named
updated-files.zip in the artifacts directory for that job.
You can then download the archive which has the changes made when
make update was run;
once the download is finished, you can update your PR with the newly updated code.
Using the short-term solution
Here’s what you can do as a contributor to get automated help updating your pull request with generated files.
Make sure to rebase your working branch against the latest base branch (usually this is
master), so that your PR includes the most recent upstream commits. Remember to push or force-push your changes.
On your PR, write a new comment that contains only the text:

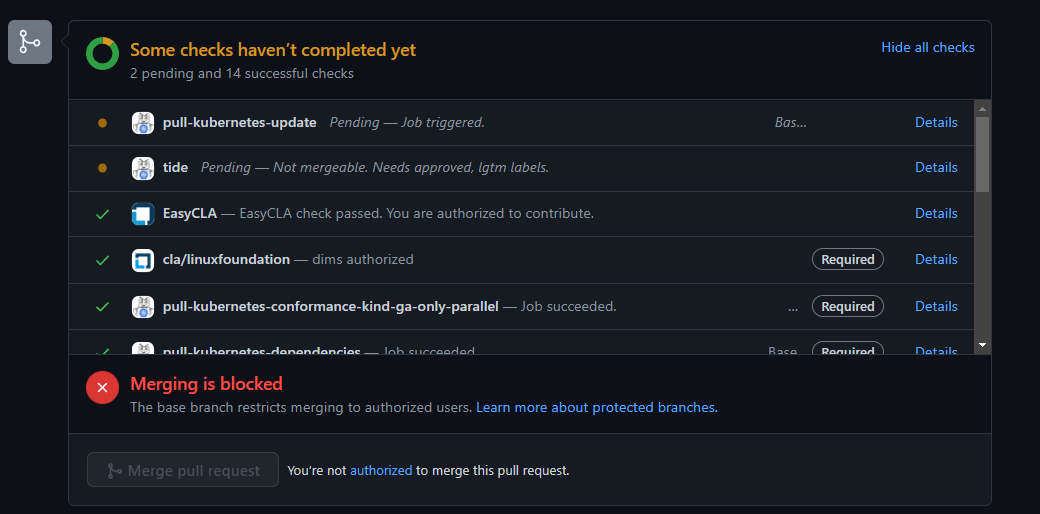

You will see the automated check lists and details.

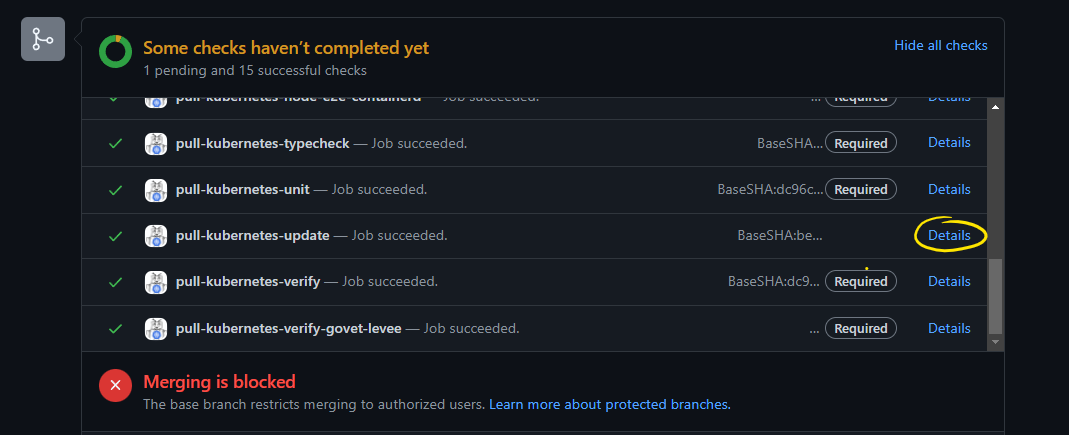

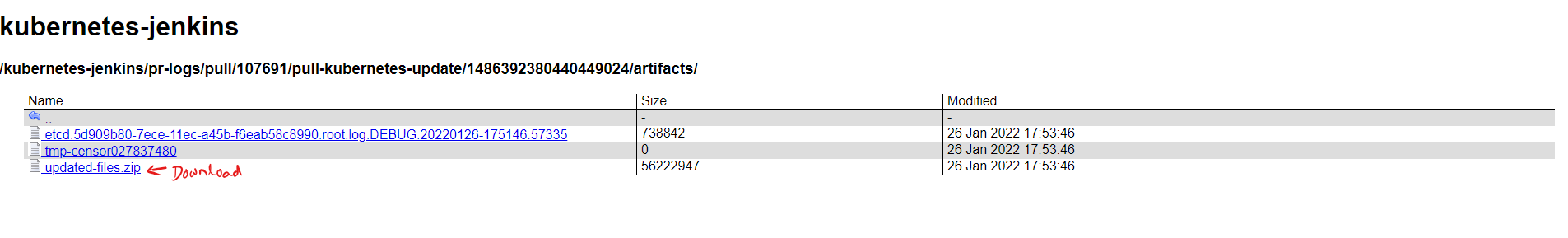

Once the checks are complete, click the
Details link on
pull-kubernetes-update job to go to the artifacts directory and download the
Now, update the PR by adding the extracted files you downloaded.
For the time being, several fantastic people are working on a bot command that will produce an additional commit with the generated files for the failed tests. In the long term, it will make things simpler. If anything becomes confusing at any point, we urge any and all inquiries to be directed on slack, regardless of experience level or complexity! We hope this shortens your debugging time and alleviates some of your concerns!
